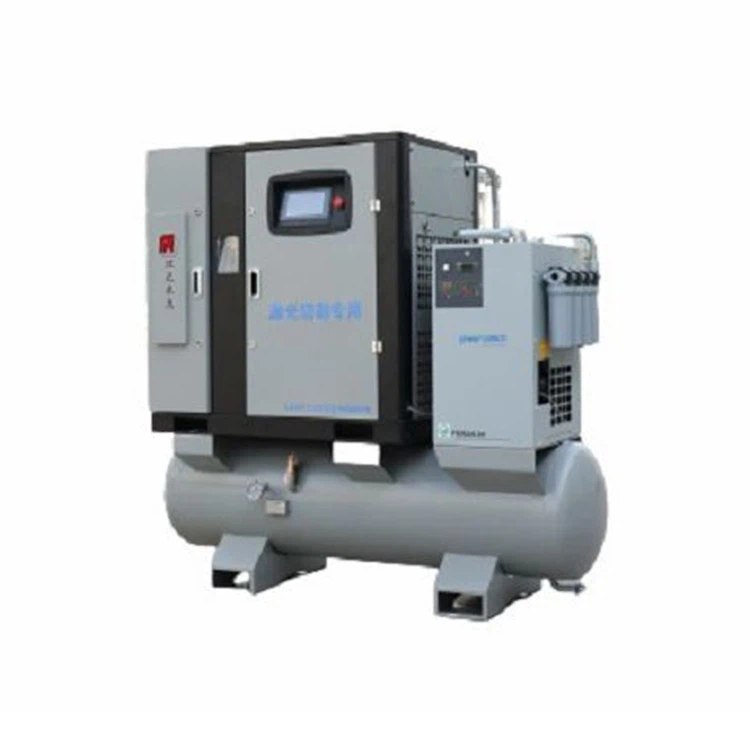

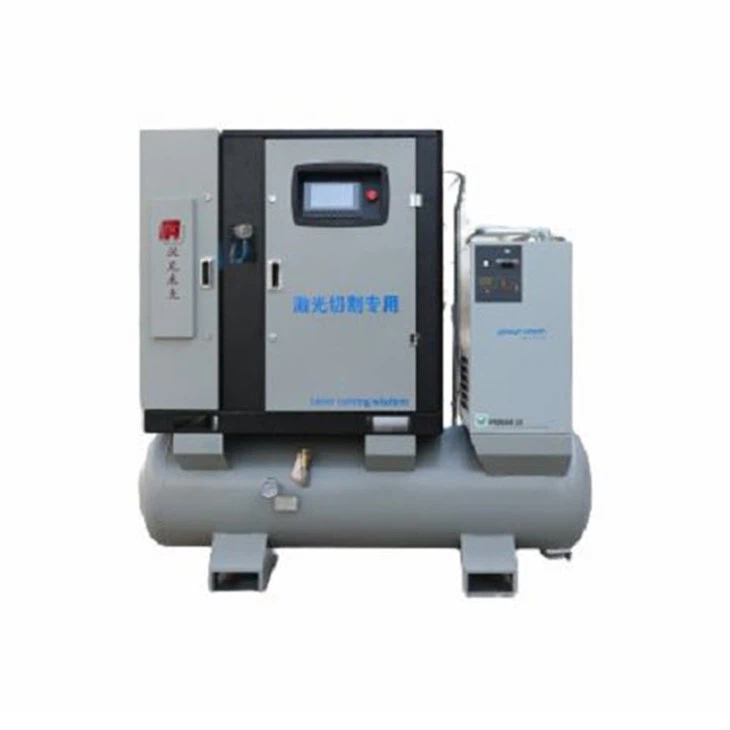

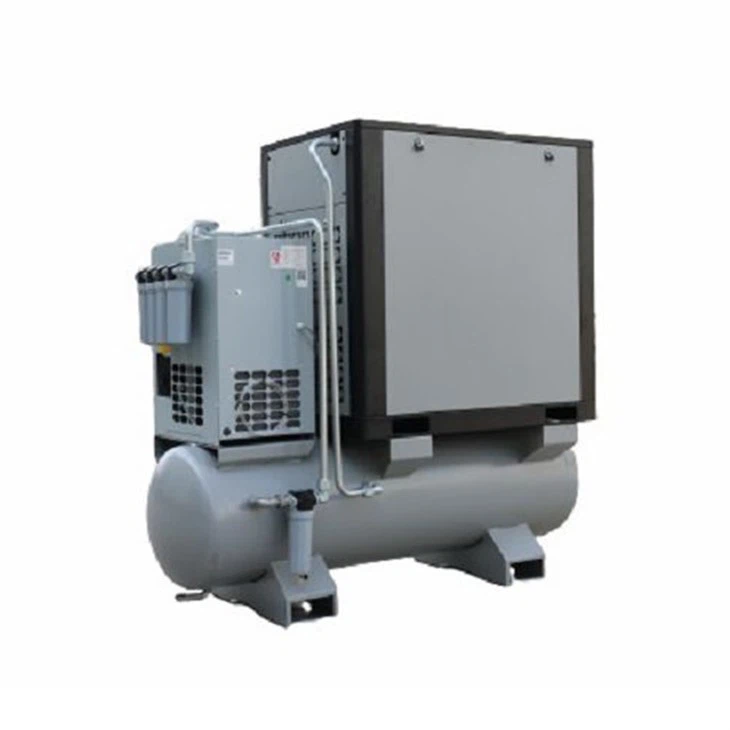

Screw Air Compressor for Laser
Screw air compressors excel in their energy efficiency, making them a preferred choice for industrial applications such as laser cutting. They are also known for their durability, low noise emissions, and low maintenance requirements. In addition, screw air compressors are available in a range of capacities to meet the specific needs of different laser equipment, making them a versatile choice for businesses of all sizes. With their high-quality performance and long lifespan, screw air compressors for laser applications are a valuable investment for any industrial or manufacturing operation.
Basic Info：
Model NO.:TSE11-16
Structure Type:Closed Type
Installation Type:Stationary Type
Type:Single Screw Compressor
Free Air Deliver:1.0 (M3/Min)
Pressure:16bar
Motor Power:11KW
Air Tank:340L
Electricity:380V
Weight:440kg
Size:1800*700*1760(mm)
R & D Capability:OEM, Own Brand
Export Mode:Have Proprietary Import and Export Rights
Transport Package:Wooden Crate Pallet+Foam Board+Bubble Film Wrapped
Specification:ISO9001, CE
Trademark:Hannemec
Origin:LinYi, China
HS Code:8414804100
Production Capacity:1000PCS/Month
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Advantage:
Screw air compressor for laser has several advantages. Firstly, it combines the functions of air compression and laser cutting in one machine, which saves space and enhances efficiency. Secondly, the laser cutting technology offers high precision cutting and reduces the risk of material deformation. Thirdly, the use of a closed-loop air system reduces the noise level and enhances the environmental friendliness of the machine. Lastly, screw air compressor for laser the integrated design provides greater convenience for operators to monitor and control the machine, resulting in greater operational safety and productivity.
|
Model |
Motor power(kw) |
Free Air Deliver |
Discharge Pressure (Bar) |
Air tank (L) |
Weight (Kgs) |
Size (mm) |
|
TSE7.5-13 |
7.5 |
0.8 |
13 |
340 |
420 |
1760*700*1600 |
|
TSE11-16 |
11 |
1.0 |
16 |
340 |
440 |
1800*700*1760 |
|
TSE15-16 |
15 |
1.2 |
16 |
340 |
450 |
1800*700*1760 |
|
TSE22-16 |
22 |
2.2 |
16 |
340 |
480 |
1800*750*1760 |
|
TSE37-16 |
37 |
3.5 |
16 |
340 |
800 |
2000*800*1800 |
Technical parameter table
|
Air compressor |
Power |
11kw |
|
Volume Flow |
1.0m³/min |
|
|
Pressure |
1.58Mpa |
|
|
Start method |
Y-Δ Start/Frequency Conversion |
|
|
Cooling method |
Air cooling |
|
|
Electricity |
380V/50Hz |
|
|
Freeze dryer |
Free Air Deliver |
2.6m³/min |
|
Pressure |
1.6Mpa |
|
|
Inlet Temperature |
≤80℃ |
|
|
Ambient Temperature |
＜45℃ |
|
|
Pressure Dew-Point |
2-10℃ |
|
|
Outlet diameter |
G1 |
|
|

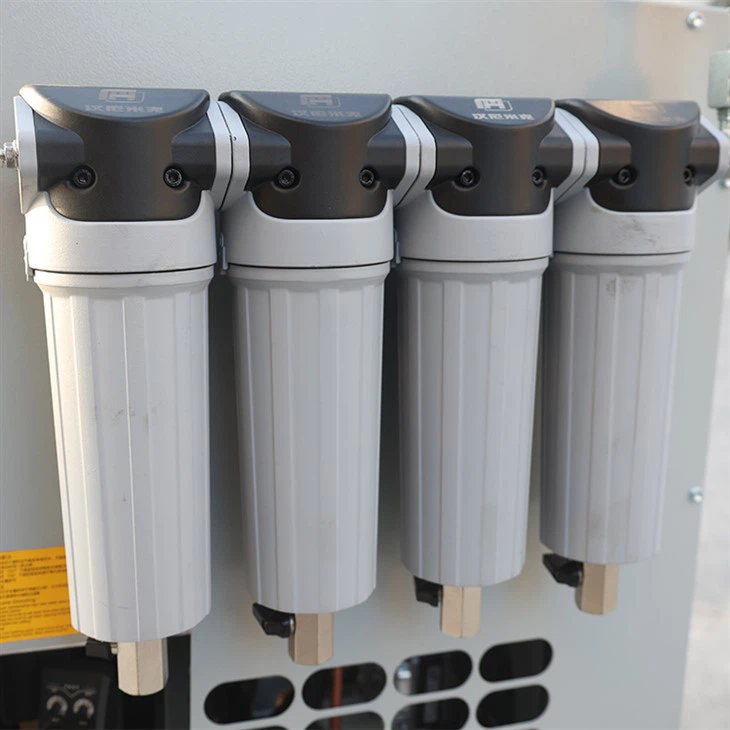

Fine filter*5 |
Free Air Deliver |
3.0m³ |
|
Pressure |
≤2.0Mpa |
|
|
Exhaust dust content |
0.01um |
|
|
Outlet diameter |
RP3/4 |
|
|
Air Tank |
Gas storage tank capacity |
350L |
|
Pressure |
1.58Mpa |
|
|
Inlet diameter |
RP3/4 |
