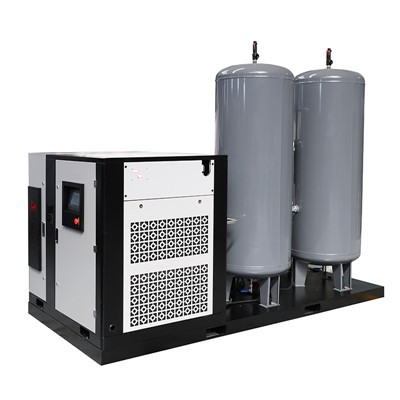

Integrated Air Compressor for Laser Cutting
The integrated air compressor for laser cutting is a device that provides a constant supply of compressed air to the laser cutting machine. This compact and efficient device helps to keep the laser cutting process smooth and uninterrupted, ensuring high-quality results. The air compressor is integrated into the laser cutting machine, eliminating the need for an external compressor and reducing the space required for the setup. Additionally, it reduces noise levels and the risk of contamination from external sources, enhancing the overall safety of the workplace. The integration of an air compressor ensures that the laser cutter has a reliable source of compressed air, making it an important component of any laser cutting system.
Basic Info：
Model NO.:TSE15-16
Structure Type:Closed Type
Installation Type:Stationary Type
Type:Single Screw Compressor
Free Air Deliver:1.2 (M3/Min)
Pressure:16bar
Motor Power:15KW
Air Tank:340L
Electricity:380V
Weight:450kg
Size:1800*700*1760(mm)
R & D Capability:OEM, Own Brand
Export Mode:Have Proprietary Import and Export Rights
Transport Package:Wooden Crate Pallet+Foam Board+Bubble Film Wrapped
Specification:ISO9001, CE
Trademark:Hannemec
Origin:LinYi, China
HS Code:8414804100
Production Capacity:1000PCS/Month
Advantage:
1. High efficiency: The integration of the laser cutting system and the air compressor allows for streamlined operations and faster production times.
2. Cost savings: The integrated air compressor for laser cutting eliminates the need for separate air compressors and laser cutting machines, significantly reducing costs.
3. Space-saving: The compact design of the integrated system saves valuable floor space in the workspace.
4. Reduced noise pollution: The integrated air compressor for laser cutting reduces noise pollution by eliminating the need for separate air compressors and laser cutting machines.
5. Ease of use: The integrated air compressor for laser cutting is easy to operate and user-friendly, with intuitive controls and simple maintenance requirements.
6.Versatility: The integrated system can handle a wide range of materials, including metal, plastic, and wood, providing greater flexibility for various applications.
|
Model |
Motor power (kw) |
Free Air Deliver |
Discharge Pressure (Bar) |
Air tank (L) |
Weight (Kgs) |
Size (mm) |
|
TSE7.5-13 |
7.5 |
0.8 |
13 |
340 |
420 |
1760*700*1600 |
|
TSE11-16 |
11 |
1.0 |
16 |
340 |
440 |
1800*700*1760 |
|
TSE15-16 |
15 |
1.2 |
16 |
340 |
450 |
1800*700*1760 |
|
TSE22-16 |
22 |
2.2 |
16 |
340 |
480 |
1800*750*1760 |
|
TSE37-16 |
37 |
3.5 |
16 |
340 |
800 |
2000*800*1800 |
Technical parameter table
|
Air compressor |
Power |
15kw |
|
Volume Flow |
1.2m³/min |
|
|
Pressure |
1.58Mpa |
|
|
Start method |
Y-Δ Start/Frequency Conversion |
|
|
Cooling method |
Air cooling |
|
|
Electricity |
380V/50Hz |
|
|
freeze dryer |
Free Air Deliver |
2.6m³/min |
|
Pressure |
1.6Mpa |
|
|
Inlet Temperature |
≤80℃ |
|
|
Ambient Temperature |
＜45℃ |
|
|
Pressure Dew-Point |
2-10℃ |
|
|
Outlet diameter |
G1 |
|
|
Fine filter*5 |
Free Air Deliver |
3.0m³ |
|
Pressure |
≤2.0Mpa |
|
|
Exhaust dust content |
0.01um |
|
|
Outlet diameter |
RP3/4 |
|
|
Air Tank |
Gas storage tank capacity |
350L |
|
Pressure |
1.58Mpa |
|
|
Inlet diameter |
RP3/4 |
|
|
Outlet diameter |
RP3/4 |
|
|
Temperature |
150℃ |
|
|
Safety valve |
RC1/2 |
|
|
Drain valve |
RC1/2 |
|
|
Size |
φ500*1760mm |
|
|
Size |
1800*700*17600mm |
|
| Weight | 450kg | |
