60 hp screw air compressor
This 60 hp screw air compressor, with a power output of 45 kW and a pressure of 16 kg, features a skid-mounted, integrated design, comprising the screw compressor, air tank, air dryer, and filtration system. It is easy to install and move, suitable for a variety of industrial applications. The screw compressor provides a stable and efficient air supply, while the air dryer removes moisture and impurities from the compressed air. The filtration system ensures that the end user receives clean, dry air, thereby extending equipment life and minimizing downtime. The skid-mounted design reduces installation time, saves space, and simplifies maintenance, making it a cost-effective and convenient solution for businesses.
Basic Info：
Model NO.:HM60
Structure Type:Closed Type
Installation Type:Stationary Type
Type:Single Screw Compressor
Free Air Deliver:5.0(M3/Min)
Pressure:16bar
Motor Power:45KW
Air Tank:600L*2
Electricity:380V
Weight:81380kg
Size:2800×1400×2500(mm)
R & D Capability:OEM, Own Brand
Export Mode:Have Proprietary Import and Export Rights
Transport Package:Wooden Crate Pallet+Foam Board+Bubble Film Wrapped
Specification:ISO9001, CE
Trademark:Hannemec
Origin:LinYi, China
HS Code:8414804100
Production Capacity:1000PCS/Month
Our Service
1. More professional product export services
2. Stronger production capacity
3. Multiple payment options: Wire Transfer (T/T), Western Union, Letter of Credit (L/C), PayPal
4. High-quality/safe materials/highly competitive prices
5. Small orders accepted
6. Fast response
7. Safer and faster shipping
Advantage:

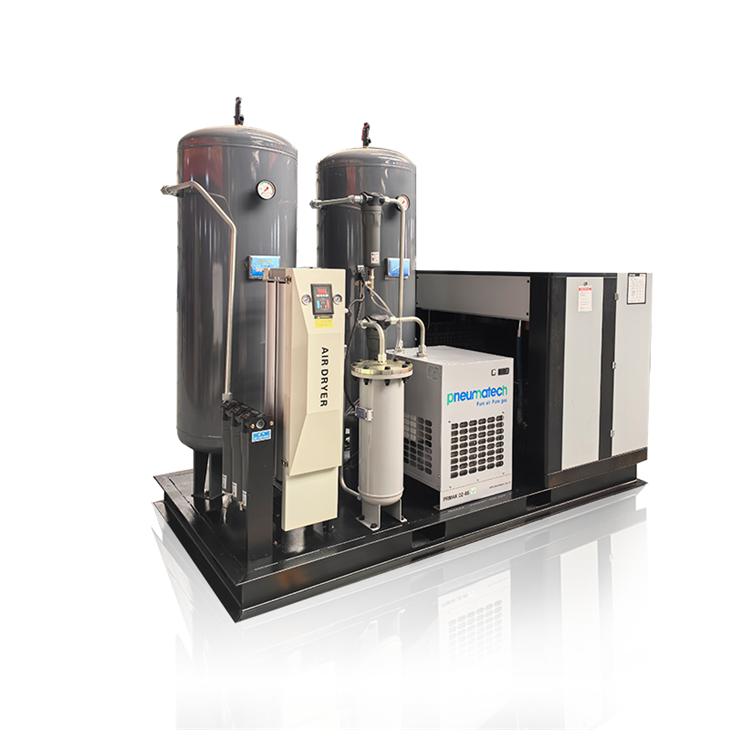

Advantages of Skid-Mounted Integrated Screw Air Compressor:
1. Compact and Space-Saving Design: Skid-mounted integrated screw air compressors are designed to take up minimal space and can be easily installed even in tight spaces. These compressors are mounted on a skid, making them highly portable and easy to move around.
2. Efficient Operation: Skid-mounted integrated screw air compressors are designed to operate efficiently, providing reliable and consistent airflow. With their advanced technology and high-quality components, these compressors offer superior performance and energy efficiency.
3. Easy Maintenance: Skid-mounted integrated screw air compressors are designed for easy maintenance, with all the components located on a single skid. This makes it easier to access and maintain the compressor, reducing downtime and repair costs.
4. Customizable: Skid-mounted integrated screw air compressors can be customized to meet specific customer requirements. They can be configured to provide the required air flow and pressure, and can be equipped with a range of options to meet specific application needs.
5. Cost-Effective: Skid-mounted integrated screw air compressors are a cost-effective solution for compressed air needs. They offer high efficiency, low maintenance costs, and a long service life, making them a worthwhile investment for businesses of all sizes.
Technical parameter table
|
45kw-16bar |
||
|
Screw air compressor |
Power |
45kw |
|
Volume Flow |
5.0m³/min |
|
|
Pressure |
1.58Mpa |
|
|
Start Method |
Frequency Conversion |
|
|
Cooling method |
Air cooling |
|
|
Electricity |
380V/50Hz |
|
|
Freeze dryer |
Free Air Deliver |
6.6m³/min |
|
Pressure |
1.6Mpa |
|
|
Inlet Temperature |
≤80℃ |
|
|
Ambient Temperature |
＜45℃ |
|
|
Pressure Dew-Point |
2-10℃ |
|
|
Outlet diameter |
G1 |
|
|
Electricity |
220V 50Hz |
|
|
Adsorption dryer |
Free Air Deliver |
6.8m³/min |
|
Pressure |
1.6Mpa |
|
|
Electricity |
220V 50Hz |
|
|
Fine filter |
Free Air Deliver |
15m³ |
|
Pressure |
≤2.0 |
|
|
Exhaust dust content |
0.01um |
|
|
Outlet diameter |
RP3/4 |
|
|
Air tank |
Gas storage tank capacity |
600L |
|
Pressure |
1.58Mpa |
|
|
Inlet diameter |
G1 |
|
|
Outlet diameter |
G1 |
|
|
Temperature |
150℃ |
|
|
Safety valve |
RC3/4 |
|
|
Drain valve |
RC1/2 |
|
|
Size |
Φ650*2200mm |
|
|
SIZE |
2800*1400*2500mm |
|
|
Weight |
1380kg |
|
|
Picture |
|
|
