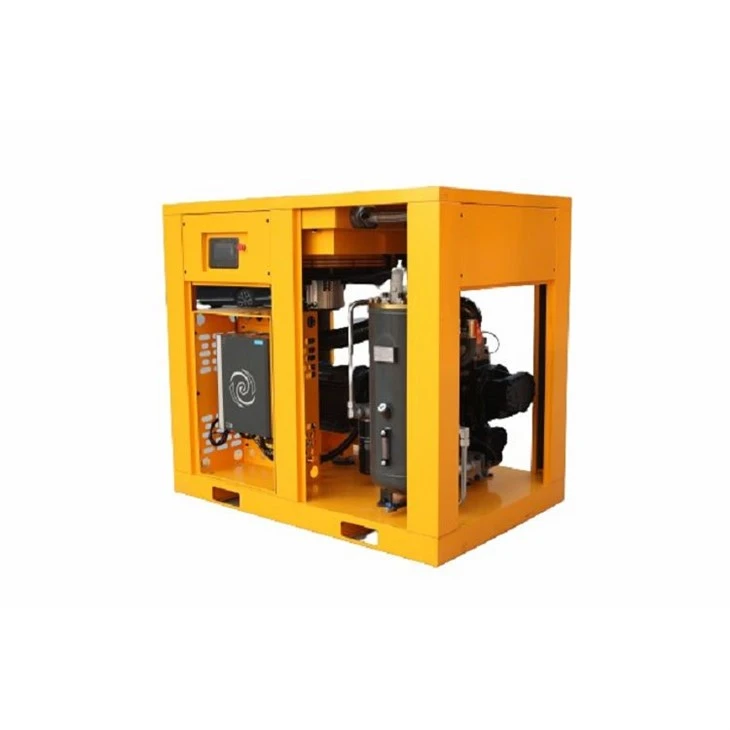

Twin Screw Air Compressor for Laser Cutting
Basic Info：
Model NO.:MK37-20
Structure Type:Closed Type
Installation Type:Stationary Type
Type:Twin-Screw Compressor
Free Air Deliver:4.0(M3/Min)
Pressure:20bar
Motor Power:37KW
Electricity:380V
Air Tank:450L*2
Weight:900kg
Size:2300*1250*1860(mm)
R & D Capability:OEM, Own Brand
Export Mode:Have Proprietary Import and Export Rights
Transport Package:Wooden Crate Pallet+Foam Board+Bubble Film Wrapped
Specification:ISO9001, CE
Trademark:Hannemec
Origin:LinYi, China
HS Code:8414804100
Production Capacity:1000PCS/Month
Our Service
1.More Professional service in Packaging and printing products exporting field
2.Better manufacture ability
3.Various payment term to choose:T/T,Western Union,L/C,Paypal
4.High quality/Safe material/Competitive price
5.Small order available
6.Quickly response
7.More safe and fast transport
8.OEM design for all customers
Advantage:
Advantages of twin screw air compressor for laser cutting:
1. Higher efficiency: The double-stage compression process increases the efficiency of the compressor by reducing the amount of power required to compress the air.
2. Reduced heat: The double-stage compression process also reduces the amount of heat generated, which extends the life of the compressor and reduces the need for regular maintenance.
3. Increased pressure: twin screw air compressor for laser cutting is capable of producing higher pressure levels, making them ideal for industrial applications that require high-pressure air.
4. Improved reliability: Because twin screw air compressor for laser cutting operate at lower temperatures and pressures, the internal components experience less stress and strain, which leads to improved reliability and longer life.
5. Versatility: Double-stage compressors can be used in a wide range of applications, including manufacturing, automotive repair, and construction, making them a versatile solution for businesses of all sizes.
6. Energy savings: Due to their higher efficiency, double-stage compressors can help businesses reduce energy costs and lower their carbon footprint, making them an eco-friendly choice for environmentally conscious companies.
|
Model |
Motor power (kw) |
Free Air Deliver |
Discharge Pressure (Bar) |
Cooling method |
Weight (Kgs) |
Size (mm) |
|
MK22-16 |
22 |
2..95 |
16 |
Air cooling |
360 |
1450*1000*1230 |
|
MK37-16 |
37 |
4.22 |
16 |
Air cooling |
430 |
1450*1000*1230 |
|
MK45-16 |
45 |
5.4 |
16 |
Air cooling |
520 |
1450*1000*1230 |
|
MK55-16 |
55 |
6.8 |
16 |
Air cooling |
650 |
1800*1200*1600 |
|
MK75-16 |
75 |
8.5 |
16 |
Air cooling |
900 |
1800*1200*1600 |
|
MK90-16 |
90 |
10.5 |
16 |
Air cooling |
1100 |
1800*1200*1600 |
|
MK110-16 |
110 |
15.0 |
16 |
Air cooling |
1300 |
1800*1200*1600 |
|
MK132-16 |
132 |
18.0 |
16 |
Air cooling |
1500 |
1800*1200*1600 |
|
MK22-20 |
22 |
2.75 |
20 |
Air cooling |
360 |
1450*1000*1230 |
|
MK37-20 |
37 |
4.0 |
20 |
Air cooling |
430 |
1450*1000*1230 |
|
MK45-20 |
45 |
5.2 |
20 |
Air cooling |
520 |
1450*1000*1230 |
|
MK55-20 |
55 |
6.5 |
20 |
Air cooling |
650 |
1800*1200*1600 |
|
MK75-20 |
75 |
8.2 |
20 |
Air cooling |
900 |
1800*1200*1600 |
|
MK90-20 |
90 |
10.2 |
20 |
Air cooling |
1100 |
1800*1200*1600 |
|
MK110-20 |
110 |
14.8 |
20 |
Air cooling |
1300 |
1800*1200*1600 |
|
MK132-20 |
132 |
15.7 |
20 |
Air cooling |
1500 |
1800*1200*1600 |
Technical parameter table
|
37kw/20bar |
||
|
Screw air compressor |
Power |
37kw |
|
Volume Flow |
4.2m³/min |
|
|
Pressure |
2.0Mpa |
|
|
Start Method |
Frequency Conversion |
|
|
Type |
Twins screw compressor |
|
|
Cooling method |
Air cooling |
|
|
Electricity |
380V/50Hz |
|
|
freeze dryer |
Free Air Deliver |
3.8m³/min |
|
Pressure |
2.0Mpa |
|
|
Inlet Temperature |
≤80℃ |
|
|
Ambient Temperature |
＜45℃ |
|
|
Pressure Dew-Point |
2-10 |
|
|
Outlet diameter |
G1 |
|
|
Electricity |
220V 50Hz |
|
|
Size(L*W*H) |
630*490*790mm |
|
|
Weight |
70kg |
|
|
Adsorption dryer |
Free Air Deliver |
3.8m³/min |
|
Pressure |
2.0Mpa |
|
|
Electricity |
220V 50Hz |
|
|
Fine filter |
Free Air Deliver |
5.0m³ |
|
Pressure |
≤2.0 |
|
|
Exhaust dust content |
0.01um |
|
|
Outlet diameter |
RP3/4 |
|
|
Air Tank |
Gas storage tank capacity |
450L |
|
Pressure |
2.0Mpa |
|
|
Inlet diameter |
G1.5" |
|
|
Outlet diameter |
G1.5" |
|
|
Temperature |
150℃ |
|
|
Safety valve |
RC1/2 |
|
|
Drain valve |
RC1/2 |
|
|
Size(L*W*H) |
φ500*2000mm |
|
|
Size |
2300*1250*1860mm |
|
|
Weight |
900kg |
|
|
Picture |
|
|
