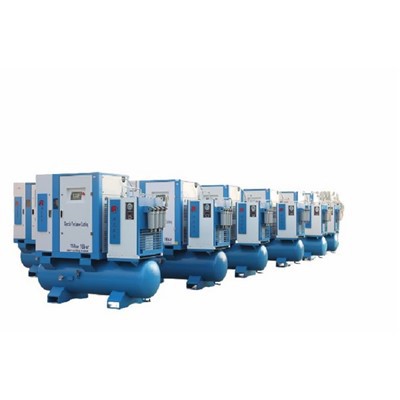

4-in-1 Screw Air Compressor For Laser Cutting
4-in-1 laser cutting screw air compressor, the integrated design is easy to install, easy to operate, and saves space. It adopts a six-bearing permanent magnet frequency conversion integrated host, which is efficient, energy-saving and smooth in cutting. The cutting surface is smoother; the air quality is high and the pressure dew point is guaranteed.It can protect the laser lens and blade; it is equipped with a 340-liter gas storage tank and is made of thickened carbon steel for better safety.
Product description:
This four-in-one screw air compressor has rated power from 7.5KW to 22KW, and the pressure can reach: 8bar-20bar. In order to ensure stable air supply, we adopt an integrated permanent magnet frequency conversion host, which is highly efficient and energy-saving. For the laser cutting and fiber cutting industries, it is equipped with a cold dryer and a five-stage filter that can remove oil, water, dust and bacteria. The filtering accuracy can reach: 0.01um, high-precision filtration, which can ensure the purest air, thereby protecting the nozzles of laser cutting machines and fiber optic machines from damage.
Why choose us?
1. We are the source manufacturer of screw air compressors. We have a large modern factory located in Linyi, Shandong, China, and support OEM and ODM services.
2. We have a professional R&D team and engineers, and have SGS and ISO certified management and control systems, which can effectively ensure the quality of air compressors.
3. Fast delivery (usually 15-30 days), if ordering special design or customized models, the shipping time will be slightly longer.
4. Small trial orders are accepted (the order quantity can be determined according to your actual needs)
5. We have a complete after-sales service team that can provide online installation and debugging guidance. Faults can be eliminated within 24-48 hours through online video or phone calls.
Product Parameters
| Model | TS7.5 | TS11 | TS15 | TS22 | |||||||||||||||
|
Power (kw) |
7.5 | 11 | 15 | 22 | |||||||||||||||
|
Working pressure (bar) |
8 | 10 | 13 | 16 | 8 | 10 | 13 | 16 | 8 | 10 | 13 | 16 | 20 | 30 | 8 | 10 | 13 | 16 | 20 |
|
Flow (m³/min) |
1.0 | 0.8 | 0.7 | 0.6 | 1.5 | 1.4 | 1.0 | 0.9 | 2.0 | 1.9 | 1.6 | 1.2~1.5 | 0.9 | 1.1 | 3.6 | 3.2 | 2.4 | 2.2 | 1.8 |
| Type | Single stage | ||||||||||||||||||
| Cooling | Air cooling | ||||||||||||||||||
|
Weight (kg) |
420 | 440 | 450 | 480 | |||||||||||||||
|
size (L*W*H mm) |
1760×600×1500 | 1760×700×1600 | 1800×700×1760 | 1800×750×1700 | |||||||||||||||
Factory introduction
Hannemec (Shandong) Intelligent Technology Co., Ltd., located in Linyi, Shandong, China, is a professional manufacturer of air compressors for laser cutting. It focuses on the research and development, production and sales of energy-saving screw air compressors. The leading products are integrated permanent magnet frequency conversion screw air compressor, laser cutting special air compressor, two-stage screw air compressor, medium and high pressure screw air compressor. It is a high-quality air compressor service provider in China.
