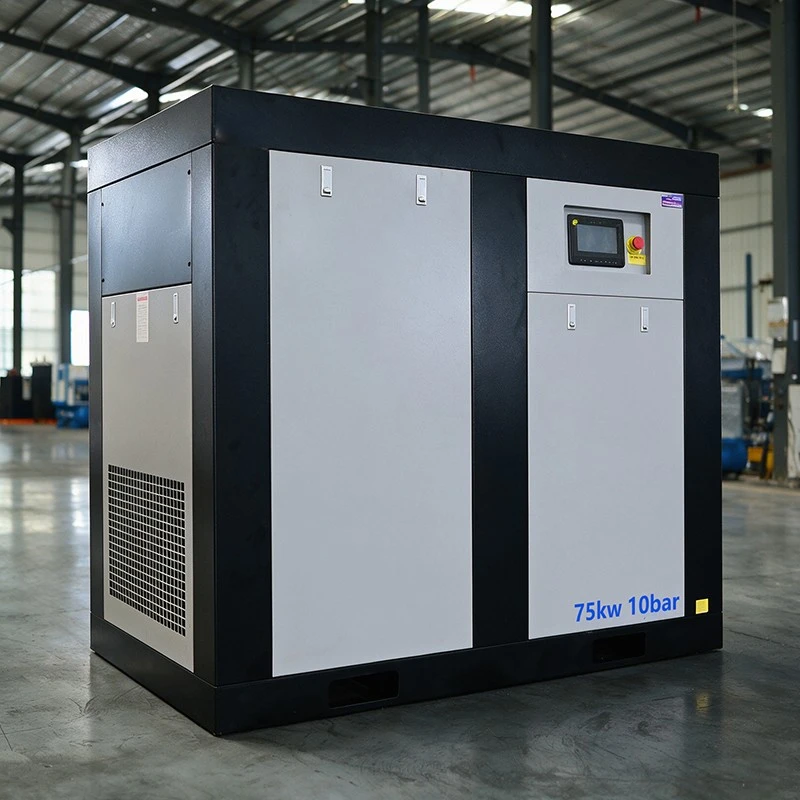

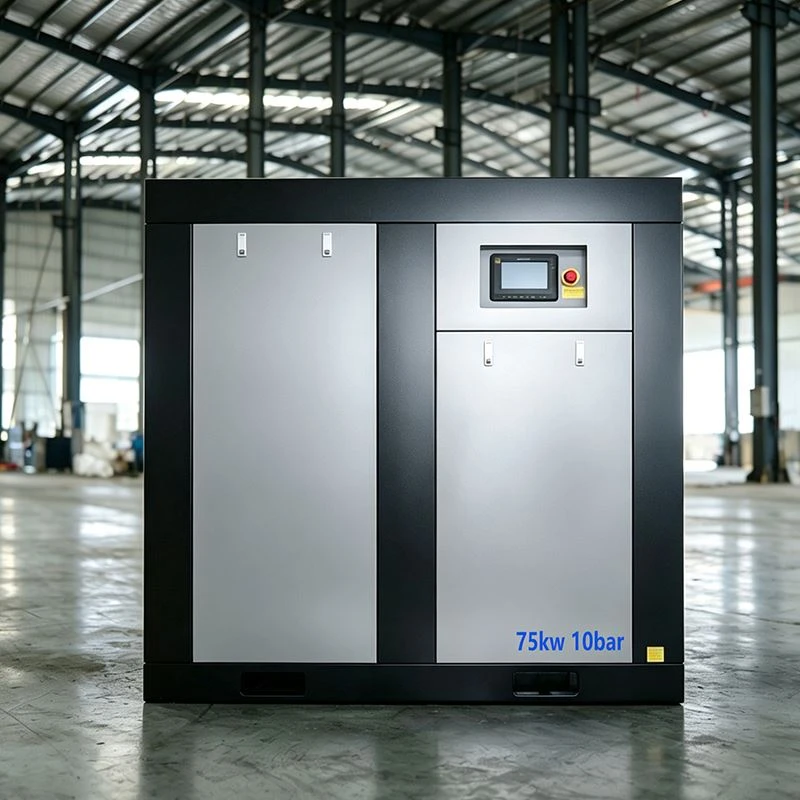

100 HP Rotary Screw Air Compressor

100 HP Rotary Screw Air Compressor - 75kW High-Capacity Industrial PM VSD Air Compressor

Our 100hp rotary screw air compressor is driven by a high-quality 75kW permanent magnet synchronous motor (PMSM) and equipped with advanced variable frequency drive (VSD) technology. With a discharge pressure of 10 bar (1.0 MPa) and a volumetric flow rate of 11 m³/min, this industrial compressor provides stable airflow and excellent energy efficiency, making it ideal for large factories and centralized compressed air systems.

Whether you operate an automotive factory, textile mill, food processing plant, or multi-line manufacturing enterprise, this 100hp stationary screw air compressor delivers the flow rate, pressure stability, and reliability required for world-class production efficiency.

Model: 100 HP / 75kW Rotary Screw Air Compressor | Air Delivery: 11 m³/min  | Pressure: 10 bar (1.0 MPa) | Cooling: Air Cooled / Water Cooled | Motor: Permanent Magnet Synchronous Motor (PMSM)

• Industrial-Grade Air End: Precision-machined screw rotors with advanced profile design, supported by heavy-duty tapered roller bearings for 60,000+ hour service life.
• Industry-Leading Efficiency: PM VSD technology delivers up to 50% energy savings compared to fixed-speed compressors
• Ultra-Stable Air Pressure: High-precision PID control maintains discharge pressure within ±0.01 MPa, ensuring consistent performance for pressure-sensitive production processes.
• Minimized Total Cost of Ownership: Long service intervals, high-efficiency operation, and readily available OEM parts result in the lowest lifetime cost in its class.
• Global Power Compatibility: Configurable for any voltage from 220V to 480V at 50Hz or 60Hz, making it suitable for deployment anywhere in the world.
• Modular & Scalable: Designed for multi-unit cascading operation - easily expand your compressed air capacity by adding units as your production grows.
• Sustainable & Eco-Friendly: Low oil carryover (≤3 ppm), high energy efficiency, and long service life contribute to a reduced carbon footprint.
•

This 100 HP industrial rotary screw air compressor is the backbone of compressed air systems for large industrial operations:

• Automotive Assembly Plants: Whole-plant compressed air for assembly lines, paint shops, robotic systems, tire mounting, and pneumatic tools
• Large-Scale Manufacturing: Centralized air systems for multi-line production facilities, machine shops, and metal fabrication plants
• Food & Beverage Industry: Large processing plants, dairy facilities, beverage bottling lines, and packaging operations (with food-grade filtration)
• Textile Manufacturing: Large spinning mills, weaving factories, dyeing plants, and non-woven fabric production lines
• Pharmaceutical & Biotechnology: Bulk drug manufacturing, packaging lines, cleanroom utilities (with oil-free air treatment)
• Plastics & Chemical Processing: Injection molding facilities, extrusion plants, blow molding operations, and pneumatic conveying systems
• Power Generation & Heavy Industry: Power plant instrument air, steel mill auxiliary systems, cement plants, and mining operations
• Central Compressor Rooms: Primary air supply for multi-building industrial parks and large-scale facility compressed air networks
•

• Quality Assurance & Certifications



• ISO 9001:ISO Certified quality management system with zero-defect manufacturing philosophy
• CE Certified - fully compliant with EU Machinery Directive 2006/42/EC and EMC Directive
• Rigorous Factory Testing: Every unit undergoes 3+ hours of full-load testing, vibration analysis, and leak testing before shipment
•

• Packaging & Shipping



• Packaging: Heavy-duty export-grade fumigated plywood crate with reinforced frame, moisture barrier, and shock-absorbent foam
• Incoterms: FOB, CFR, CIF, DAP, DDP - all terms available
• Lead Time: 10–20 working days for standard models; 25–35 days for custom/OEM orders
• Port of Loading: Shanghai / Ningbo / Shenzhen (China)

• 1-Year Comprehensive Warranty on the complete compressor system
• 24/7 Global Technical Support via phone, email, WhatsApp, WeChat, and video conferencing
• Lifetime Spare Parts Supply - genuine OEM parts guaranteed
• Remote IoT Diagnostics - real-time monitoring, predictive maintenance, and cloud-based analytics
•

Question 1: Is a 100 hp compressor suitable for a large factory?

Answer: A 100 hp compressor can serve as the primary air source for many medium to large factories. For critical processes, we recommend an N+1 redundancy configuration (e.g., two 100 hp compressors or three 75 hp compressors) to ensure uninterrupted production even during maintenance.

Question 2: How much cost can I save by choosing a PM VSD 100 hp compressor compared to a fixed-speed compressor?

Answer: The cost savings depend on your air requirements, but most customers can save 30% to 50% on compressor power costs. For a 100 hp compressor operating for 8,000 hours per year, this equates to annual savings of $10,000 to over $25,000.

Question 3: Which cooling method should I choose for a 100 hp compressor?

Answer: For most standard installation environments with ambient temperatures below 35°C and good ventilation, an air-cooled compressor is recommended. For locations with higher ambient temperatures, clean rooms, or facilities already equipped with chilled water systems, a water-cooled compressor is more recommended.

Q4: Do you provide installation and commissioning services?

A: Yes, we can provide complete after-sales service solutions, including system design, equipment supply, installation guidance, commissioning, and operator training. For international customers, we provide on-site service through our global partner network.
