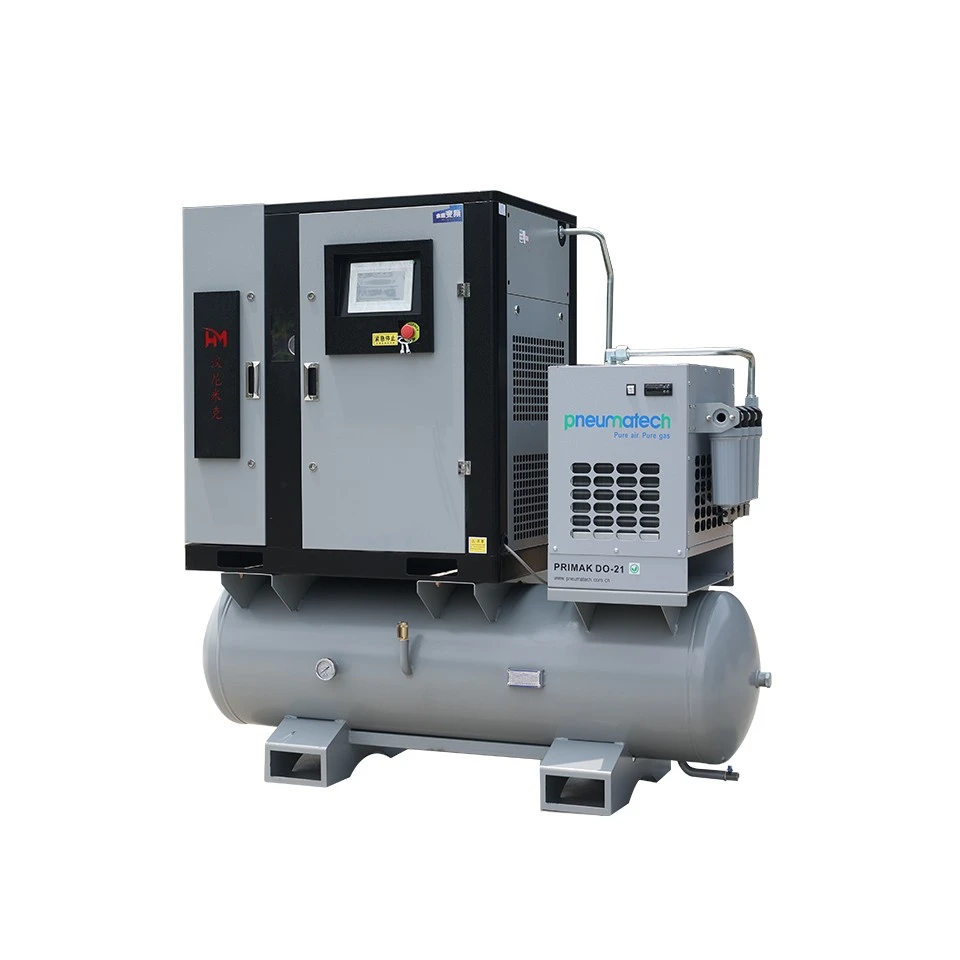

16bar Screw Air Compressor For Laser Cutting

The 16-bar laser cutting air compressor is designed specifically for fiber laser cutting applications. 16 bar (1.6 MPa) has become a common specification for air compressors used with medium-to-high power fiber laser cutting machines, stably meeting the air cutting needs of most carbon steel and stainless steel thin sheets. It integrates a 22kW permanent magnet variable frequency compressor, a refrigerated dryer, a 340L air tank, and a five-stage precision filtration system into a compact unit, directly delivering stable, clean, and dry compressed air to the laser cutting nozzle. It's ready to use upon arrival at the factory for power and pipe connection, saving space, reducing installation costs, ensuring cutting quality, and providing oil-free and moisture-free air.

Traditionally, air systems required separate screw air compressors, refrigerated dryers, air tanks, and filters, all connected via piping. This was not only time-consuming and labor-intensive, but also ideally required specialized personnel. This 16bar laser-cutting-specific air compressor, however, integrates these four core components, achieving plug-and-play convenience and reducing space requirements.

Screw Compressor Host

22kW permanent magnet variable frequency screw compressor main unit. Automatically adjusts speed according to real-time air demand, achieving 30–40% energy savings compared to fixed-speed models. Pressure fluctuation < ±0.1 bar.

Refrigerated Dryer

It uses a Newmantech refrigerated dryer from an international brand, with a stable low dew point of 3-5℃, ensuring thorough water removal. It also uses environmentally friendly refrigerant, resulting in low power consumption and energy efficiency.

gas tank

340L gas tank with internal anti-corrosion coating to improve the purity of compressed gas, stabilize pressure, and prevent frequent compressor start-stop.

5-Stage Precision Filter

Sequential filtration: Pre-filter → Precision dust removal → Activated carbon filter → Activated carbon filter → Super dust removal. Oil content ≤0.01ppm, particle size ≤0.01μm.

Integrated System Advantages

• Saves 75% of floor space
• Simply connect to power and air outlet to operate
• Short internal piping design, zero piping pressure loss
• Single point maintenance – unified maintenance plan, warranty, and supplier
• Lower total cost – no separate piping, fittings, or installation labor required

1. Ultimate Stability, Safeguarding Cutting Precision

Core Power: Utilizes advanced permanent magnet synchronous motor and variable frequency drive technology to achieve wide-range intelligent stepless speed regulation.

Constant Pressure Air Supply: Regardless of fluctuations in your equipment's air consumption, it adjusts its speed in real time, precisely stabilizing the exhaust pressure at 16 bar. This effectively avoids problems such as uneven cut surfaces and slag buildup caused by pressure fluctuations, ensuring consistent precision in every cut.

2. High Efficiency and Energy Saving, Directly Reducing Operating Costs

On-Demand Air Supply: Compared to traditional linear frequency air compressors, permanent magnet variable frequency technology can save up to 30% on energy consumption. When operating under non-full load, it automatically reduces speed, eliminating idle waste and ensuring every unit of electricity is used effectively.

Smooth Start-up: The soft-start function reduces the impact on the power grid, while also reducing mechanical wear and extending equipment life.

3. Pure Air Source, Protecting Expensive Laser Equipment

We understand that even a trace of oil, a speck of moisture, or a speck of dust can contaminate optical lenses, affecting beam quality and even causing equipment downtime. Therefore, we provide a complete post-treatment purification system:

Refrigerated Dryer: Powerful cooling and dehumidification, deeply removing moisture from compressed air to prevent condensation and corrosion inside the laser head and pipelines.

Precision Filter: Multi-stage filtration efficiently removes oil, dust, and solid particles, ensuring the cleanliness of the output gas meets the stringent requirements of laser cutting.

4. Integrated Design, Worry-Free and Effortless:

The screw compressor, motor, electrical control system, and cooling system are highly integrated into one compact structure, saving space.

Pre-tested before leaving the factory, it's ready to use immediately, easy to install, and greatly saves you installation costs and time.

The HM30 integrated screw air compressor is designed for use with mainstream fiber laser cutting machines ranging from 6000W to 12000W. Proven compatibility includes:

Comprehensive Warranty: 1-year warranty on the entire machine
Installation Support: Free remote installation guidance; product manual included with each unit
Spare Parts: Ample supply of filters, lubricants, and wear parts
Global Response: 24-hour email response, 48-hour video technical support
Lifetime Support: Technical consultation throughout the product's entire lifecycle

Quality Control Process

Each 16bar screw air compressor undergoes continuous load testing before leaving the factory, including pressure stability testing, vibration analysis, noise measurement, and air purity verification. Test reports and operating videos will be provided to the customer before delivery.
